KPI-JCI 5x16-3

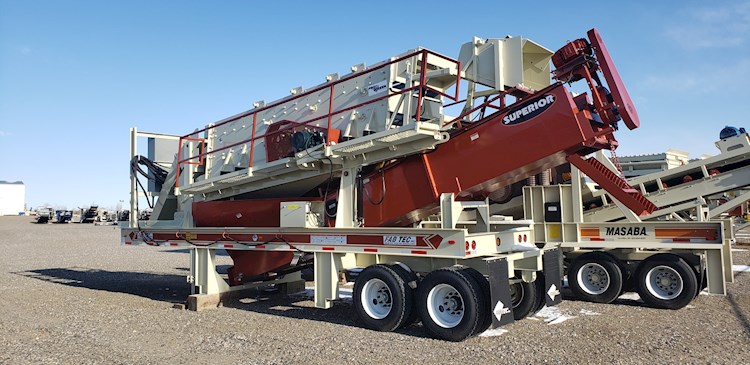

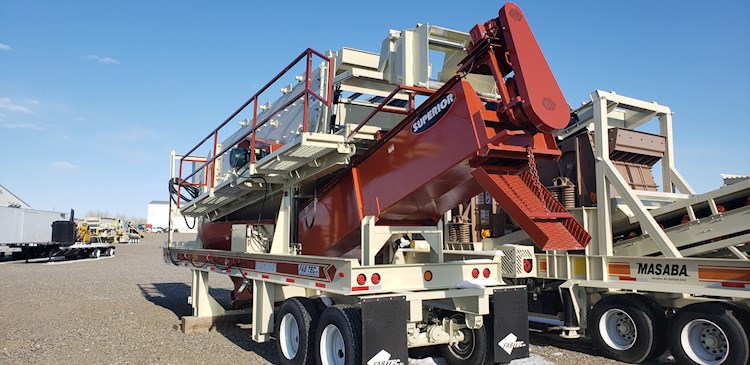

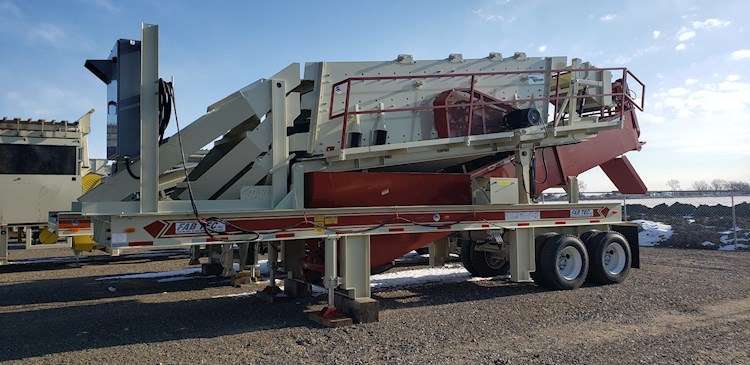

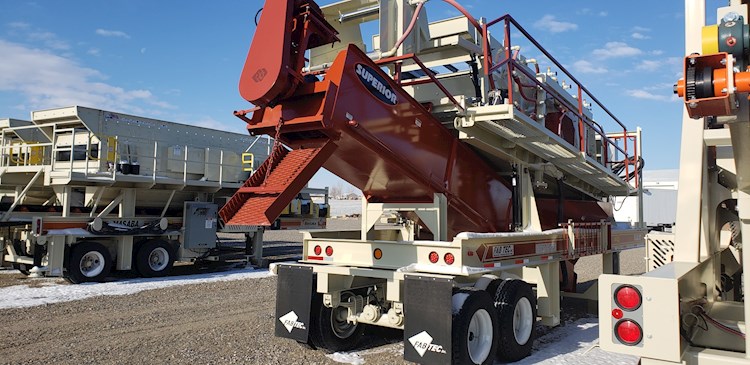

New Fabtec 5x16 triple deck Washplant with Single 36” sandscrew(LESS ELECTRICAL PACKAGE)

FabTec Pro 5x16 Three Deck Incline Screen

·        20 HP TEFC with pivot motor base and power and belt

·        3/8" PL side walls

·        Huck bolted screen decks

·        Rectangular tubing, ½" x 3" FB crown bars

·        AR lined Feed Box and Discharge Lips

·        Alco high temper isolation springs

·        100 MM Torrington spherical bearings

·        FAB TEC cartilage style bearing housings, with heavy duty 1 1/4" wall.

·        Eccentrics with add on weights.

·        10" WF sub frame 33# with C8"x 13.75# cross members.

·        Standard side tension formed clamp bars and ½" crown bar rubbers.

Superior/Greystone 36"x25' Sandscrew

·        15 HP TEFC Motor

·        Outboard pillow block bearing

·        Urethane replaceable wear shoes

·        100 TPH material size 3/8"

Tandem Axle Chassis

·        16” Heavy Duty Wide Flange Beams

·        Hutch 9700 series suspension.

·        22,500# Standard forge axles.

·        11:00x22.5 Tires

·        Feed Slurry Box with Spray Heads

·        Hydraulic Raise and Lower of Screen and Slurry Box

·        Qty (3) AR Lined Discharge Chutes with product blending chutes

·        18” Walkways on both sides of screen

·        48” Back Platform

• Hydraulic landing legs with 12 volt system
• Removable stand for electrical box

·        Standard 5th wheel plate, brakes, lights, & mud flaps.

·        Hand rails and Ladders

·        Guards

Plumbing and fittings for rising current into sand screw

Spray bar wash system

·        Qty (10) 1½" spray bars

·        Brass "Vee Jet" nozzles

·        Brass individual gate valves for each spray bars.

·        Water manifold with inlet pipe and flange
